Product name: Onboard USB Charger

Figure5-U22a-Onboard-USB-Charger

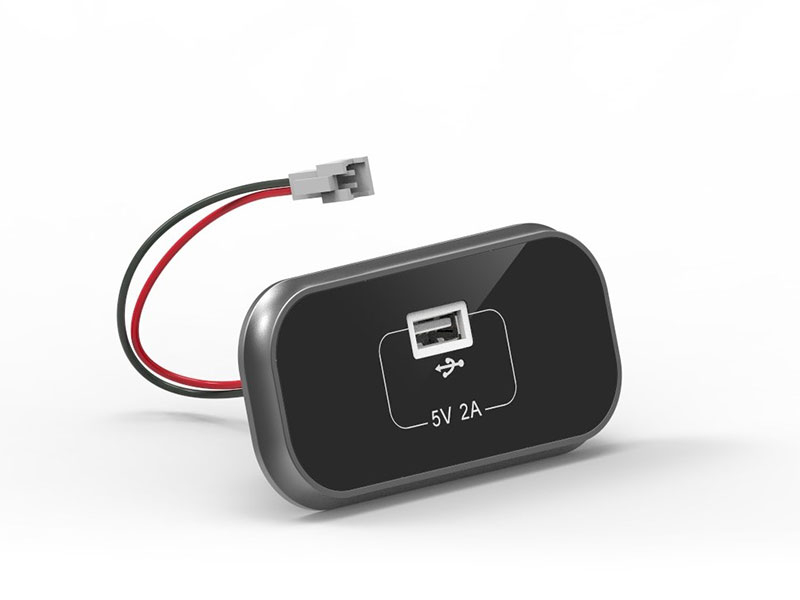

Figure1: U22a Onboard USB Charger

Figure6-U22b-Onboard-USB-Charger

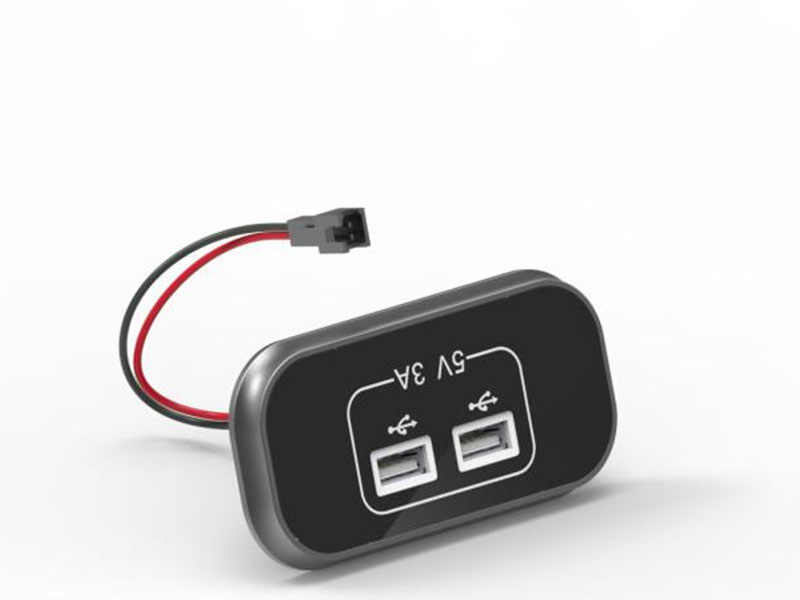

Figure2: U22b Onboard USB Charger


Figure7-U22a-&U22b-Onboard-USB-Charger_back

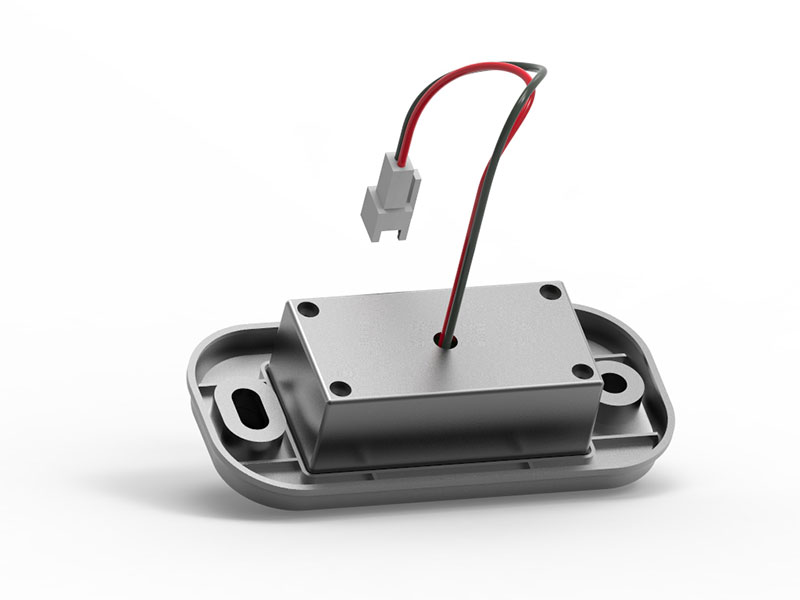

Figure3: U22a &U22b Onboard USB Charger_back


In order to meet the power demand of passengers in various kinds of transportation, Ltime has developed a number of on-board intelligent chargers for passengers. These products are usually installed in the front and rear position of the seat to facilitate the use of passengers.

According to the demand of segmentation, we have developed power products for mobile phones, tablets, laptops and other different mobile terminal devices, such as "smart onboard USB charger" (U11/U12 /U212/U222/U111/U112/U22a/U22b) ,"smart onboard USB type-C charger" (U13) and "smart onboard AC/DC charger" (AU13).  These products can provide strong power to mobile terminal devices in time, so that passengers can obtain high-quality service and good travel experience during the journey.

A large number of high-precision electronic components are widely used in the design and manufacture, which have passed EMC test. The frame is made of PC material which has passed anti-flame and odor test. All products have obtained E-MARK certification to ensure your safety.

*Support big current charging mode of Apple/Samsung mobile phone

*Support multiple types of charging interfaces

*Integrated AC/DC charging modes

*Support multiple fast charging protocols

*Short circuit and overload protection

*Over temperature and over current protection

*Anti-flame material

*E-MARK certification

*Better travel experience

1.ONBOARD USB CHARGER, MODEL: U11/U12 /U212/U222/U111/U112/U22a/U22b


BASIC   PARAMETERS

Operating Voltage

DC 9-36V

Max Output Current

single port 5A/dual port 2A * 2

Operating Temperature

-20℃~85℃

Product Size

U11/U12: 41*32.7*30.3mm

U212/U222: 44.6*55.2*42.1mm

U111/U112: 44.6*90*42.1mm

U22a/U22b: 98*48*23.5mm

Net Weight

U11/U12:22g/23.3g

U212/U222:53.9g/54.9g

U111/U112:25.9g/27.9g

U22a/U22b:38g/40g


2 ONBOARD USB TYPE -C CHARGER, MODEL: U13/U113


BASIC   PARAMETERS

Operating Voltage

DC9~36V

Max Output Current

single port 5A/dual port 2A * 2

Operating Temperature

–40°C to 150°C

Product Size

41*32.7*30.3mm

Net Weight

24g


3 ONBOARD AC/DC CHARGER, MODEL: AU13


BASIC   PARAMETERS

Operating Voltage

AC 85~265V

Max Output Current

5V3A/9V2A/12V1.5A

Operating Temperature

 –30°C to 155°C

Product Size

150.4*43*111.1mm

Net Weight

324g
