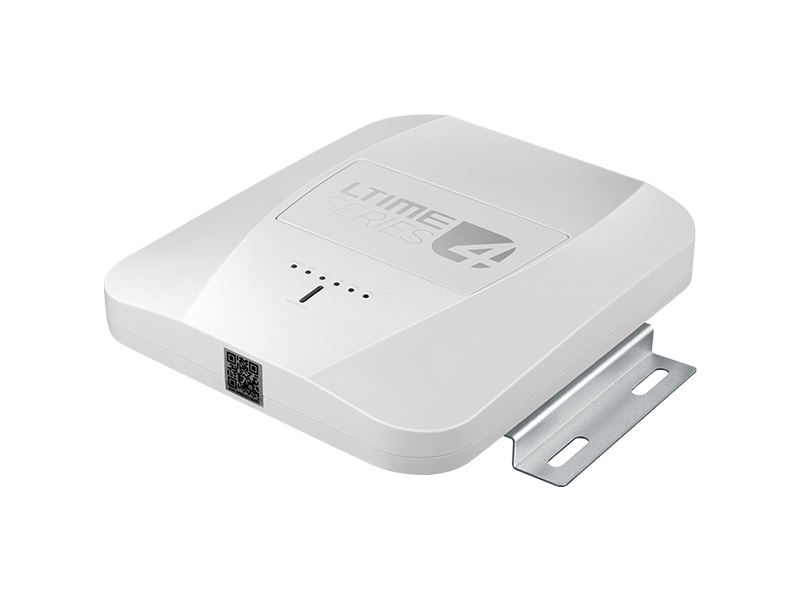

LTIME Onboard VOD Server LT-BS40U

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button


Product name: Onboard VOD server



kuangjiatu


Company


gs


Certificate


rz


Production Workflow Chart


lc

LT-BS40U/LT-BS40C Onboard VOD Server is used in various passenger and tourist bus, passenger train and cruise ship etc. The product adopts powerful Huawei Hisilicon processor to face various applications calmly; Wi-Fi module based on Qualcomm atheros chip technology has strong anti-interference ability and excellent transmission ability, which makes the device work stably in various complex environments;The product also uses the world's leading TI power chip to provide stable and continuous protection for the product's power circuit when the equipment is under high energy impact during operation. It is an on-board wireless video on demand device with independent intellectual property rights.



This server integrates 4G LTE/3G HSPA + Wi-Fi 802.11ac wireless communication technology and supports intelligent switching between two different telecom operators' networks; High performance video and image processing engine with multiple complex image processing algorithms provides digital (HDMI) and analog (AV) signal output; 4G and Wi-Fi transmission adopt our patent technology of built-in combined antenna, which supports networking with multiple vehicle tablets, vehicle TV, smart phones and other terminal devices; One onboard VOD server supports simultaneous access of about 50 tablets or 80 smart phones; It supports tablets and smart phones to access the Internet after online verification; supports intelligent advertising and remote management; supports efficient and fast maintenance and management based on cloud platform, improves operation efficiency and reduces management cost for customers.

The onboard VOD server supports four ways to update the contents stored in the built-in SSD as follows:

1. Update through USB flash disk.

2. Update by laptop via cable and FTP.

3. Update by laptop via Wi-Fi hotspot and FTP.

4. Remote update and maintenance through cloud management platform.



A large number of precision electronic parts and components are used in the design and manufacture of the products, which have passed EMC test verification; the shell is made of PC material with excellent flame retardant resistance from LG company, which meets the flame retardant and odor verification test standards; Through the innovative design of double-layer heat dissipation with aluminum casting embedded in the shell, the heat dissipation performance is optimized and improved. The product has obtained E-MARK certification from SGS.



Ltime company actively explores the cutting-edge technology and potential application of Internet, always keeps customers in mind, provides high-quality ride experience for passengers and creates more value for our customers.

*Patent technology of built-in combined antenna

*Patent design with double layer aluminum heat dissipation

*Huawei Hisilicon processor

*Qualcomm atheros dual band Wi-Fi module IEEE 802.11b/g/n/ac

*SSD storage (128GB - 1TB)

*HDMI/AV output

*Anti-flame material

*E-MARK certification

*Supporting 4G LTE / 3G HSPA

*Supporting 2 SIM cards and automatic switch

*Networking of multiple terminal devices

*Intelligent advertising

*Convenient maintenance & management

*Quality rides experience

*Create value for customers

BASIC PARAMETERS

Operating Voltage

DC 12V/24V

Working Current

500mA@24V

Max Power

12W

Operating Temperature

-20℃~ + 70℃

Product Size

239.5(W)*195(H)*48(D)mm

Net Weight

1000g(Fixed bracket not included)

Wireless Standard

IEEE 802.11b/g/n/ac

Communication Mode

3G/4G (TD-LTE/FDD-LTE/TD-SCDMA/WCDMA/GSM)

Wi-Fi Band

2.4G/5.8G

Storage

Built-in 128G SSD(Expandable)

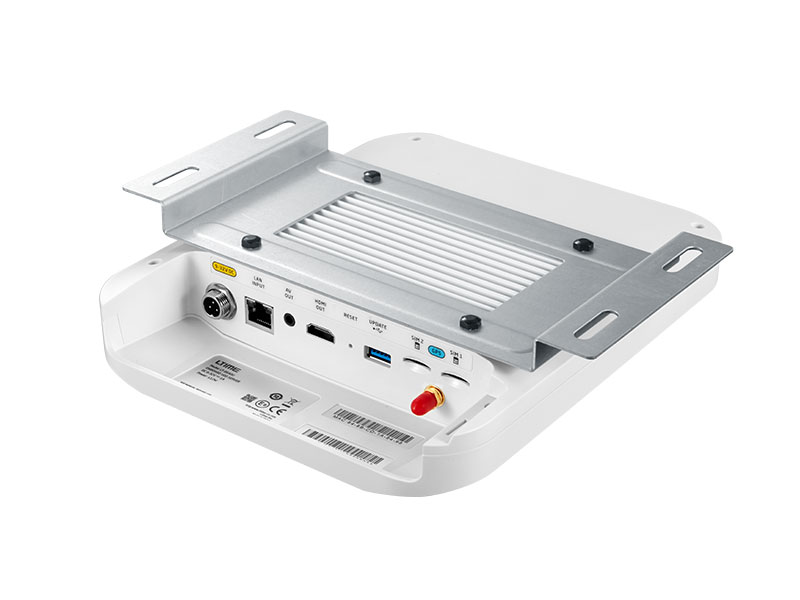

EXTERNAL FUNCTION INTERFACE

SIM

SIM Card Slot*2

GPS

Support GPS/GLONASS/Baidu/Galileo/QZSS Location

USB

USB 3.0 Jack

Reset

Press and hold for 5 seconds to restart the device to restore the factory settings

HDMI Out

HD video output interface

AV Out

Standard definition video output interface

WAN Input

WAN/LAN RJ45(1000Mbps) Jack

Aviation Connector

Power input socket

STATE INDICATOR LIGHT

2.4G

If the indicator light is on for a long time, it means that the 2.4G Wi-Fi band is normal

5.8G

If the indicator light is on for a long time, it means that the 5.8G Wi-Fi band is normal

4G

The indicator light is on for a long time, indicating that 4G communication is normal

GPS

The indicator light is on for a long time, indicating that the GPS signal is normal

SATA

The indicator light flashes, indicating that the SSD is in operation

ARM

The indicator light flashes, indicating that the SSD is being updated
