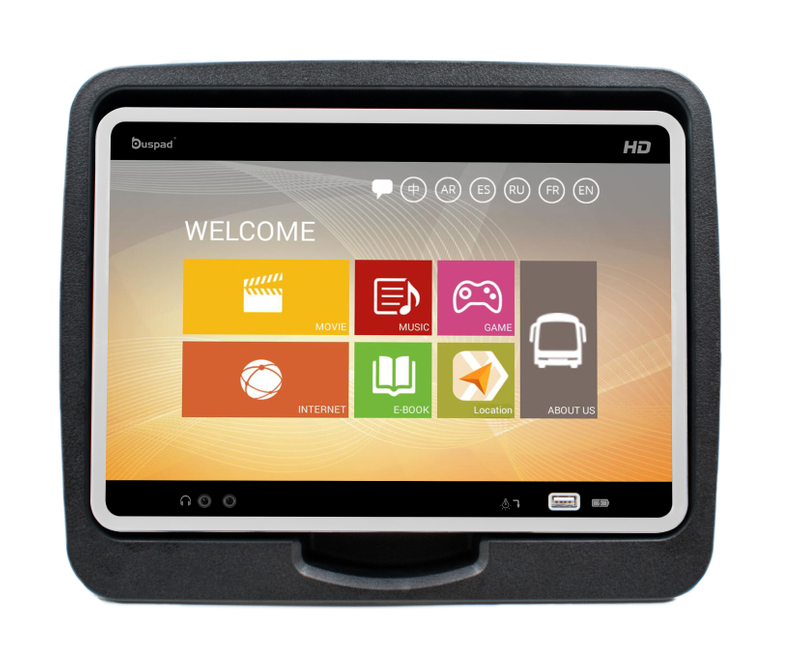

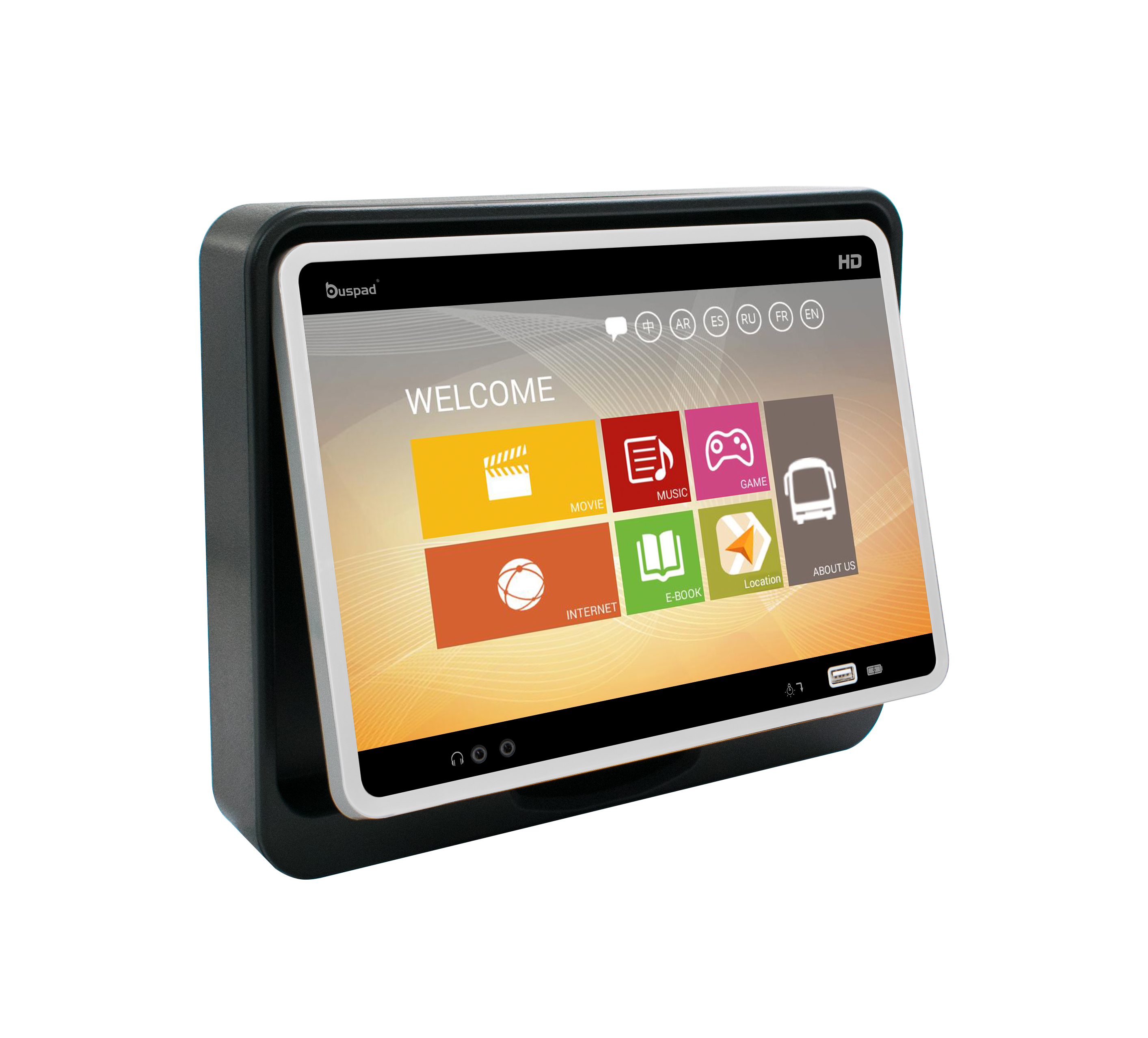

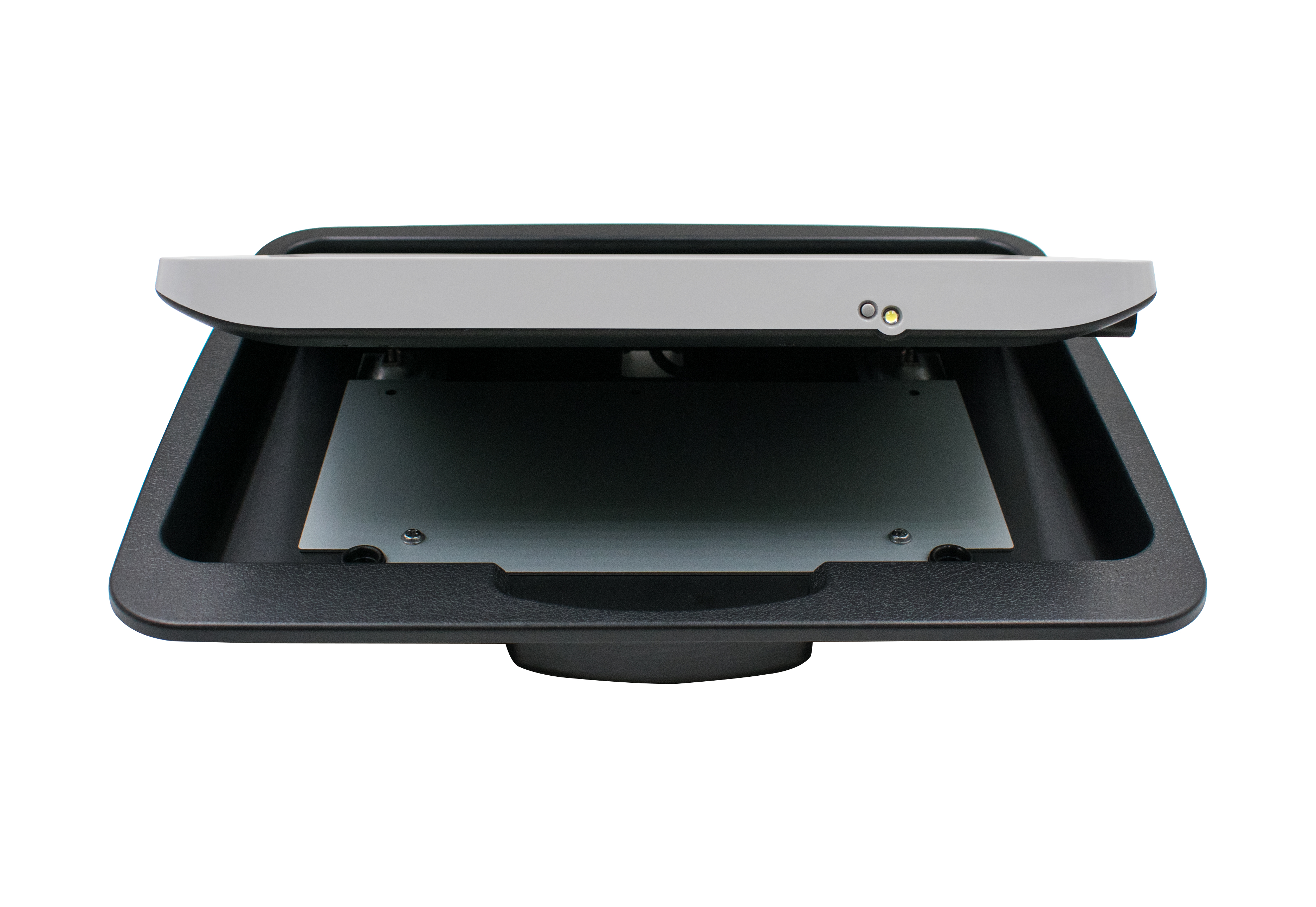

BP-13RS Onboard tablet Screen Viewing angle adjustable(45°)
Working Principle
Scenario shows
Bus VOD Entertainment System
Our References
Exhibition
Product name: Onboard tablet
BP-13RS Onboard tablet Screen Viewing angle adjustable(45°)
Working Principle
Scenario shows
Bus VOD Entertainment System
Our References
Exhibition
BP-7A / BP-9A/ BP-9H/ BP-10A/ BP-10AS / BP-13RS / BP-13N multi model on-board tablets are usually used in long-distance buses, tourist buses, passenger trains, cruise ships and other means of transportation to provide passengers with multimedia information services on the way.
The product adopts low-power and high-performance processor developed by rockchip, the mainstream chip manufacturer in China. It is the world's first core chip based on ARM new architecture. Its powerful embedded hardware engine provides excellent performance for high-end applications. The high-performance dual channel external storage interface can withstand harsh memory bandwidth, support multiple format decoding, and has powerful image processing capability and rich interface applications. Broadcom's Wi-Fi module, the world's leading wireless communication semiconductor brand, can provide stable wireless connection for all devices. Innolux and BOE display screen can support full view HD display. The surface of multi-point capacitive touch screen is covered with explosion-proof and anti glare film to ensure safe use and obtain the best visual effect. We can provide a series of products of different sizes such as 7 inches / 9 inches / 10.1 / 13.3inches. The products all use famous Texas Instruments power chip technology to provide stable and continuous protection to the product's power circuit when the equipment is under high energy impact during operation. It is an intelligent terminal equipment that can be widely used in vehicle electronic equipment industry.
A large number of high-precision electronic components are used in the design and manufacture of our tablets, which have passed EMC test. The frame is made of PC material which has passed anti-flame and odor test. The design of anti-collision structure can ensure that our product can pass vehicle crash test and obtain E-MARK certification.
Passengers can obtain multimedia information and other services by touching our tablets on the seat back or armrest bracket. Besides, it supports charging service through its USB interface. It supports networking with our onboard VOD server through Wi-Fi, so as to obtain rich multimedia information and carry out efficient management and convenient maintenance of equipment. It supports SD card local update and storage. It also supports remote update of multiple devices through station Wi-Fi coverage system or even directly from cloud.
Ltime company always keeps customers in mind, continues to provide competitive products and service, creates greater value for customers and provides high-quality travel experience for all passengers.
BP-7A / BP-9A/ BP-9H/ BP-10A/ BP-10AS / BP-13RS / BP-13N multi model on-board tablets are usually used in long-distance buses, tourist buses, passenger trains, cruise ships and other means of transportation to provide passengers with multimedia information services on the way.
The product adopts low-power and high-performance processor developed by rockchip, the mainstream chip manufacturer in China. It is the world's first core chip based on ARM new architecture. Its powerful embedded hardware engine provides excellent performance for high-end applications. The high-performance dual channel external storage interface can withstand harsh memory bandwidth, support multiple format decoding, and has powerful image processing capability and rich interface applications. Broadcom's Wi-Fi module, the world's leading wireless communication semiconductor brand, can provide stable wireless connection for all devices. Innolux and BOE display screen can support full view HD display. The surface of multi-point capacitive touch screen is covered with explosion-proof and anti glare film to ensure safe use and obtain the best visual effect. We can provide a series of products of different sizes such as 7 inches / 9 inches / 10.1 / 13.3inches. The products all use famous Texas Instruments power chip technology to provide stable and continuous protection to the product's power circuit when the equipment is under high energy impact during operation. It is an intelligent terminal equipment that can be widely used in vehicle electronic equipment industry.
A large number of high-precision electronic components are used in the design and manufacture of our tablets, which have passed EMC test. The frame is made of PC material which has passed anti-flame and odor test. The design of anti-collision structure can ensure that our product can pass vehicle crash test and obtain E-MARK certification.
Passengers can obtain multimedia information and other services by touching our tablets on the seat back or armrest bracket. Besides, it supports charging service through its USB interface. It supports networking with our onboard VOD server through Wi-Fi, so as to obtain rich multimedia information and carry out efficient management and convenient maintenance of equipment. It supports SD card local update and storage. It also supports remote update of multiple devices through station Wi-Fi coverage system or even directly from cloud.
Ltime company always keeps customers in mind, continues to provide competitive products and service, creates greater value for customers and provides high-quality travel experience for all passengers.
*Simple and friendly interface
*G+G multi point capacitive touch screen
*Explosion proof touch panel
*Rockchip high performance processor
*Broadcom dual band Wi-Fi module
*SD card storage and update
*USB charging interface
*Support embedded installation
*Support installation with swing arms
*Flame retardant material
*E-MARK certification
*Better travel experience
*Create more value for customers
*Simple and friendly interface
*G+G multi point capacitive touch screen
*Explosion proof touch panel
*Rockchip high performance processor
*Broadcom dual band Wi-Fi module
*SD card storage and update
*USB charging interface
*Support embedded installation
*Support installation with swing arms
*Flame retardant material
*E-MARK certification
*Better travel experience
*Create more value for customers
BASIC PARAMETERS | |
Operating Voltage | DC 12V/24V |
Working Current | BP-7A: 210mA@24V |
BP-9A: 360mA@24V | |
BP-9AH: 360mA@24V | |
BP-10A: 270mA@24V | |
BP-10AS: 300mA@24V | |
BP-13RS: 400mA@24V | |
BP-13N: 400mA@24V | |
Max Power | BP-7A: 5W |
BP-9A: 9W | |
BP-9AH: 9W | |
BP-10A: 6W | |
BP-10AS: 7W | |
BP-13RS: 10W | |
BP-13N: 10W | |
Operating Temperature | -20℃~ + 70℃ |
Product Size | BP-7A: 179(W)*119(H)*27(D)mm |
BP-9A: 228(W)*159(H)*23(D)mm | |
BP-9AH: 228(W)*159(H)*23(D)mm | |
BP-10A: 253(W)*173(H)*24(D)mm | |
BP-10AS: 253(W)*173(H)*24(D)mm | |
BP-13RS: 400(W)*220(H)*26(D)mm | |
BP-13N: 400(W)*220(H)*26(D)mm | |
Net Weight (bracket not included) | BP-7A: 443g |
BP-9A: 740.3g | |
BP-9AH: 740.3g | |
BP-10A: 920.3g | |
BP-10AS: 858.1g | |
BP-13RS: 1200g | |
BP-13N: 1200g | |
Wireless Standard | IEEE 802.11b/g/n/ac |
Operating System | Android 6.0 OS /Android 7.1 OS (BP-13RS/BP-13N) |
Front Camera | 0.3 Mpixels |
Wi-Fi | Receive 2.4G/5.8G band Wi-Fi |
EXTERNAL FUNCTION INTERFACE | |
USB | USB charging jack |
Mini USB | Developer Software Debugging jack |
Headphone Jack | 3.5mm stereo jack*2 |
Reset | Power restart button |
SD Card Slot | Firmware upgrade |
TOUCH BUTTONS (BP-7A/9A/10) | |
Volume㊉ | Volume increase button |
Volume㊀ | Volume decrease button |
〇 | Return button |
Brightness㊉ | Brightness increase button |
Brightness㊀ | Brightness decrease button |
TOUCH VIRTUAL BUTTONS (BP-9AH/10AS/13RS) |
