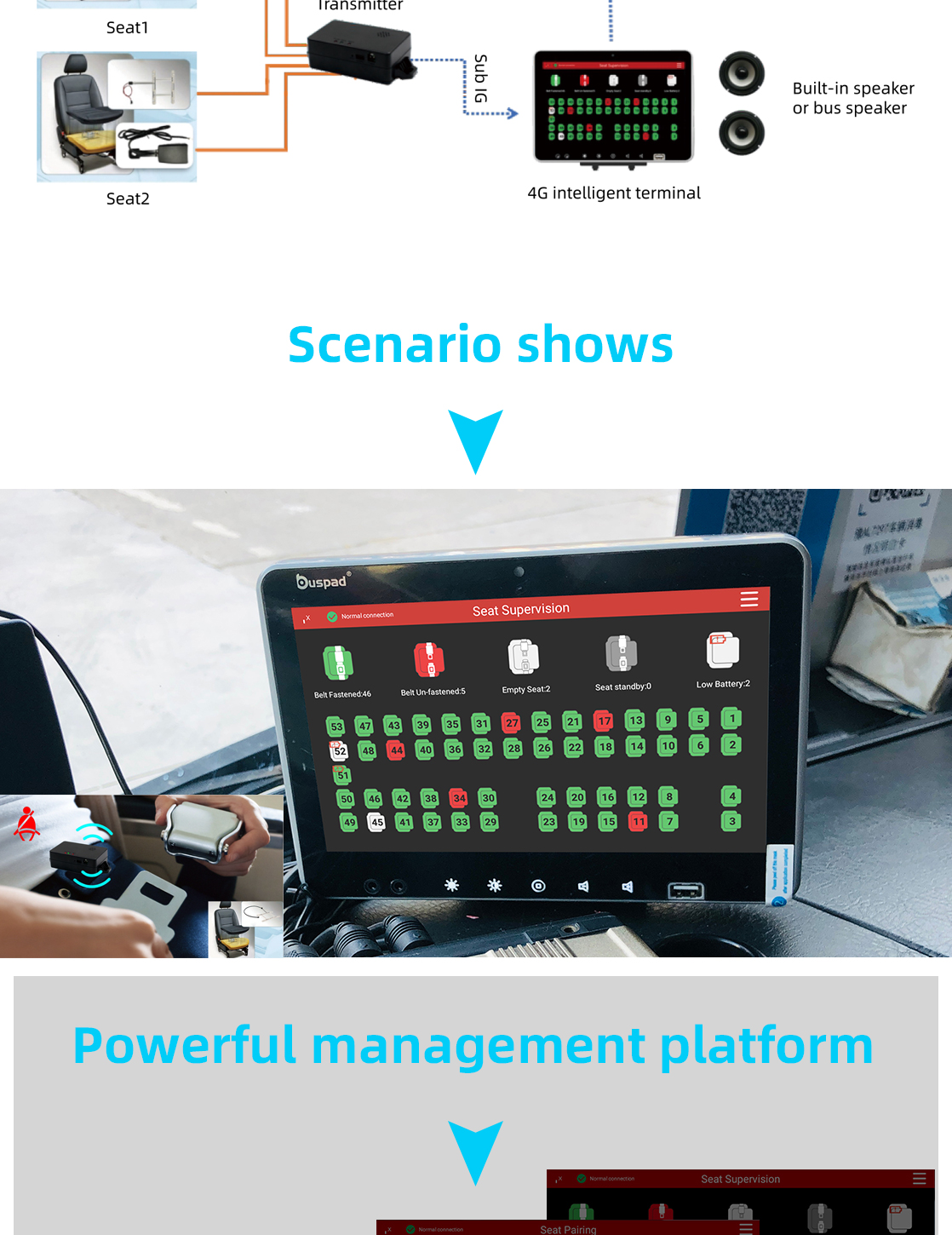

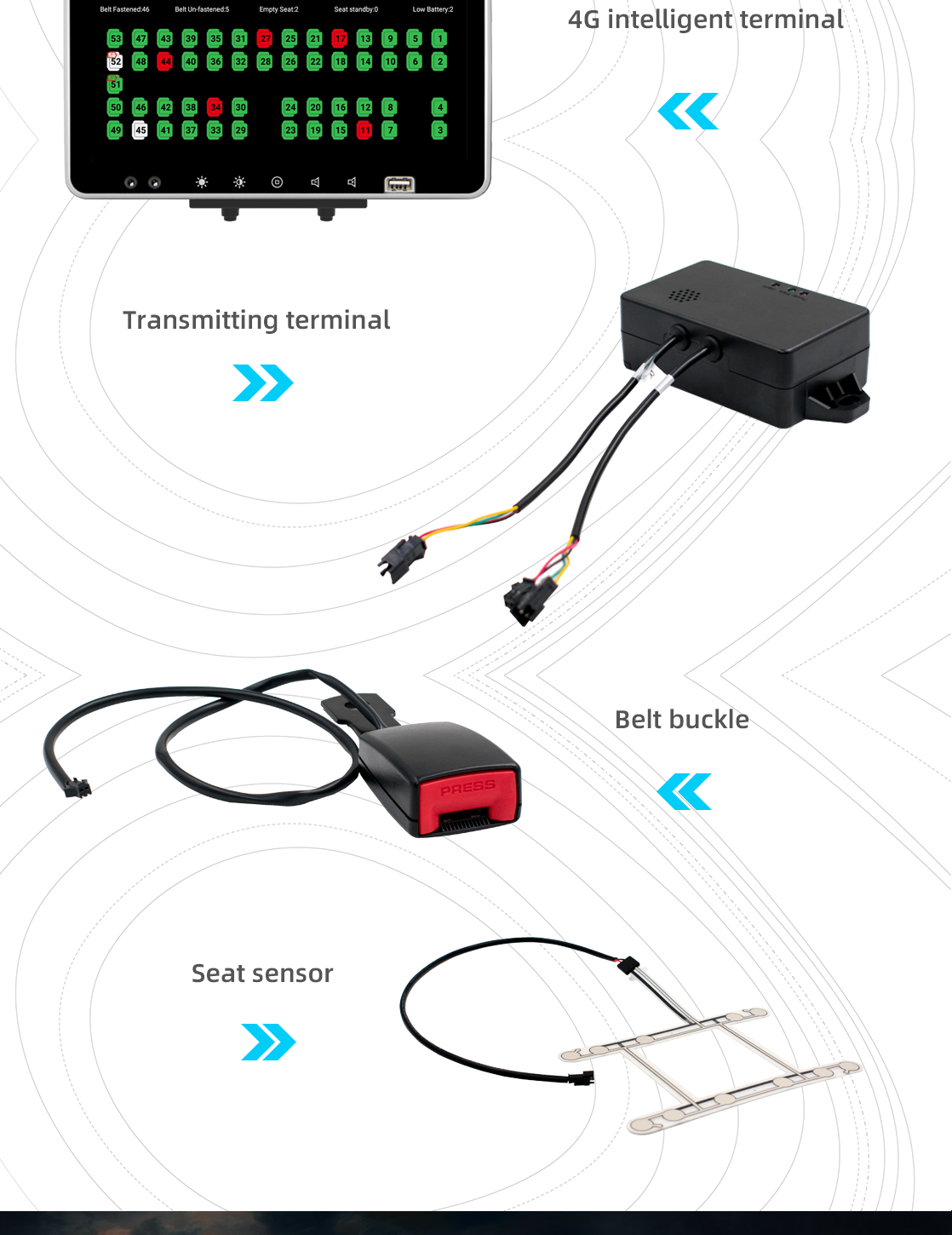

LTIME Belt Alarm System adopts low power Sub-1G wireless solution, can either connect bus power or use batteries in the transmitter, which is very easy for installation and after-sale service.You can use it simply by alarm to unfastened passengers, or install a 4G intelligentterminalto monitor the whole bus realtime belt situation. You can even carry out real time supervision from cloud platform to ensure security.
LTIME Belt Alarm System adopts low power Sub-1G wireless solution, can either connect bus power or use batteries in the transmitter, which is very easy for installation and after-sale service.You can use it simply by alarm to unfastened passengers, or install a 4G intelligentterminalto monitor the whole bus realtime belt situation. You can even carry out real time supervision from cloud platform to ensure security.

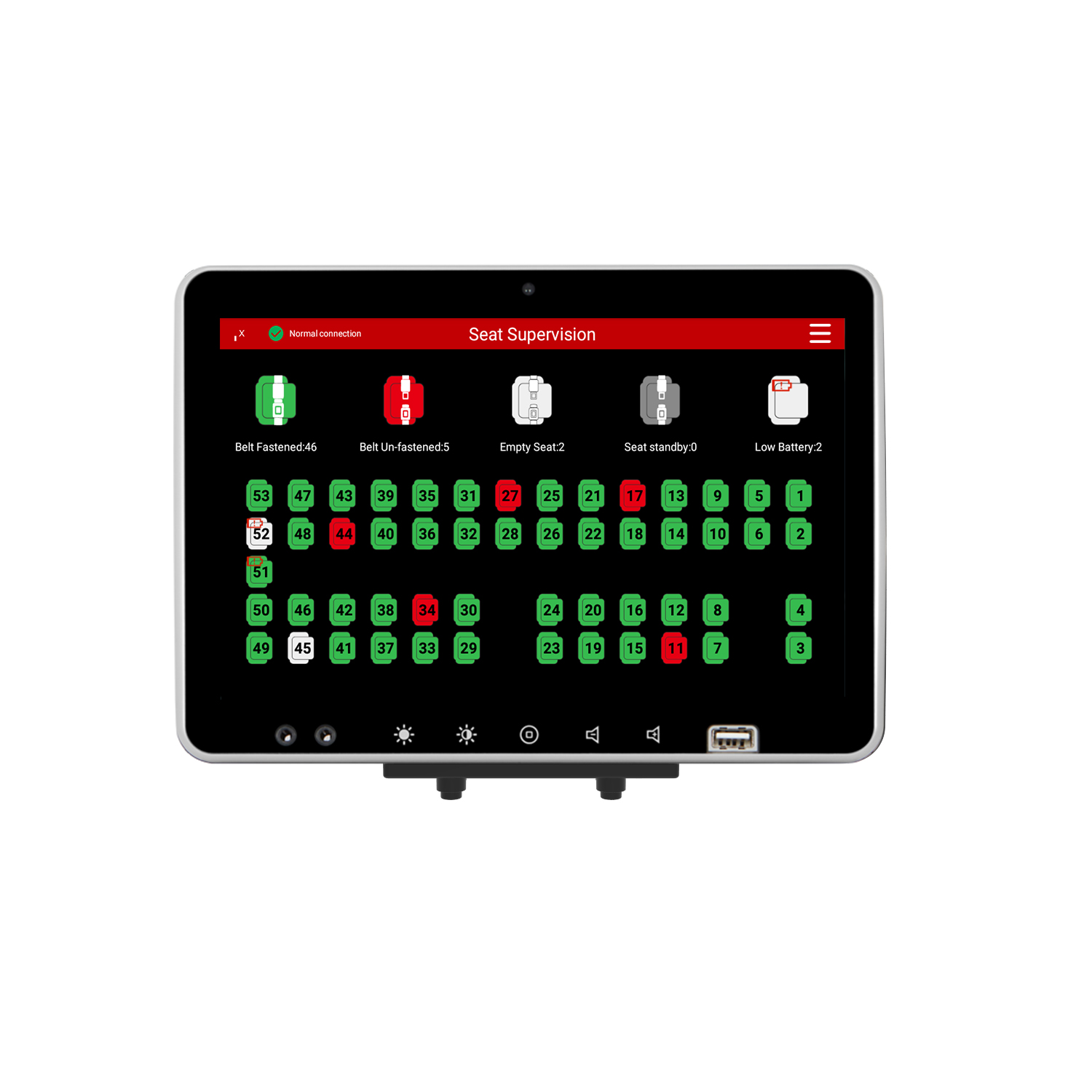

| Seat Belt Intelligent Alarm System 4G communication intelligent terminal LT-CB-12 | ||
| Name | Specification | Note |
| Screen size | 9" | |
| Touch screen | Capacitive screen | |
| System | Android 7.1 | |
| Communication band | Sub-1G | |
| Receiving distance | 50 meters | |
| Power supply mode | 9V~36V DC | |
| Data upload | 4G full Netcom | optional |
| Positioning method | GPS | optional |
| Audio output 1 | Built-in 2W speaker | optional |
| Audio output 2 | Connect to vehicle amplifier speakers | |
| Installation method | Installed on the front of the bus / fixed with screws | |
| Appearance size | 228(W)mm×156.5(H)mm×42(D)mm | |

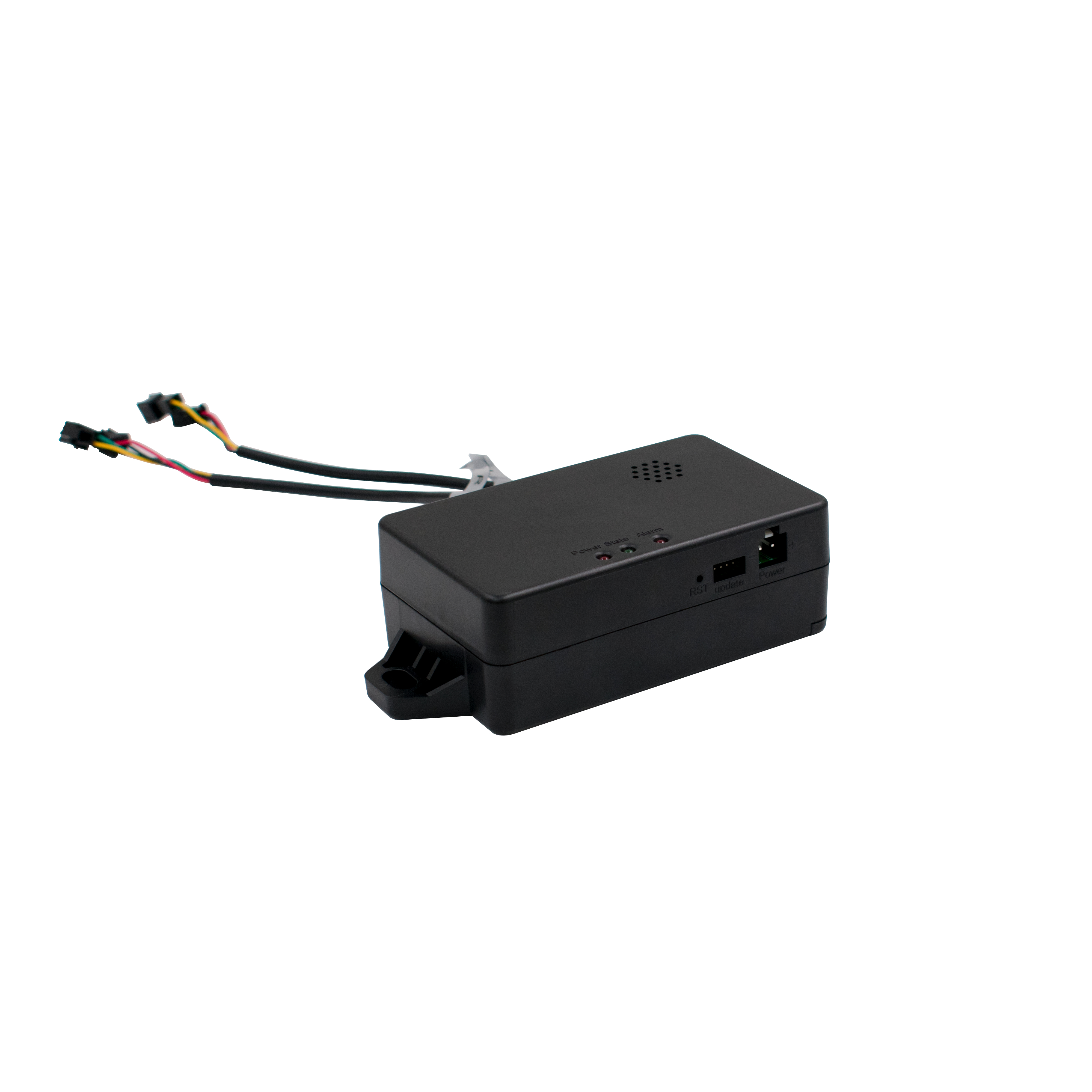

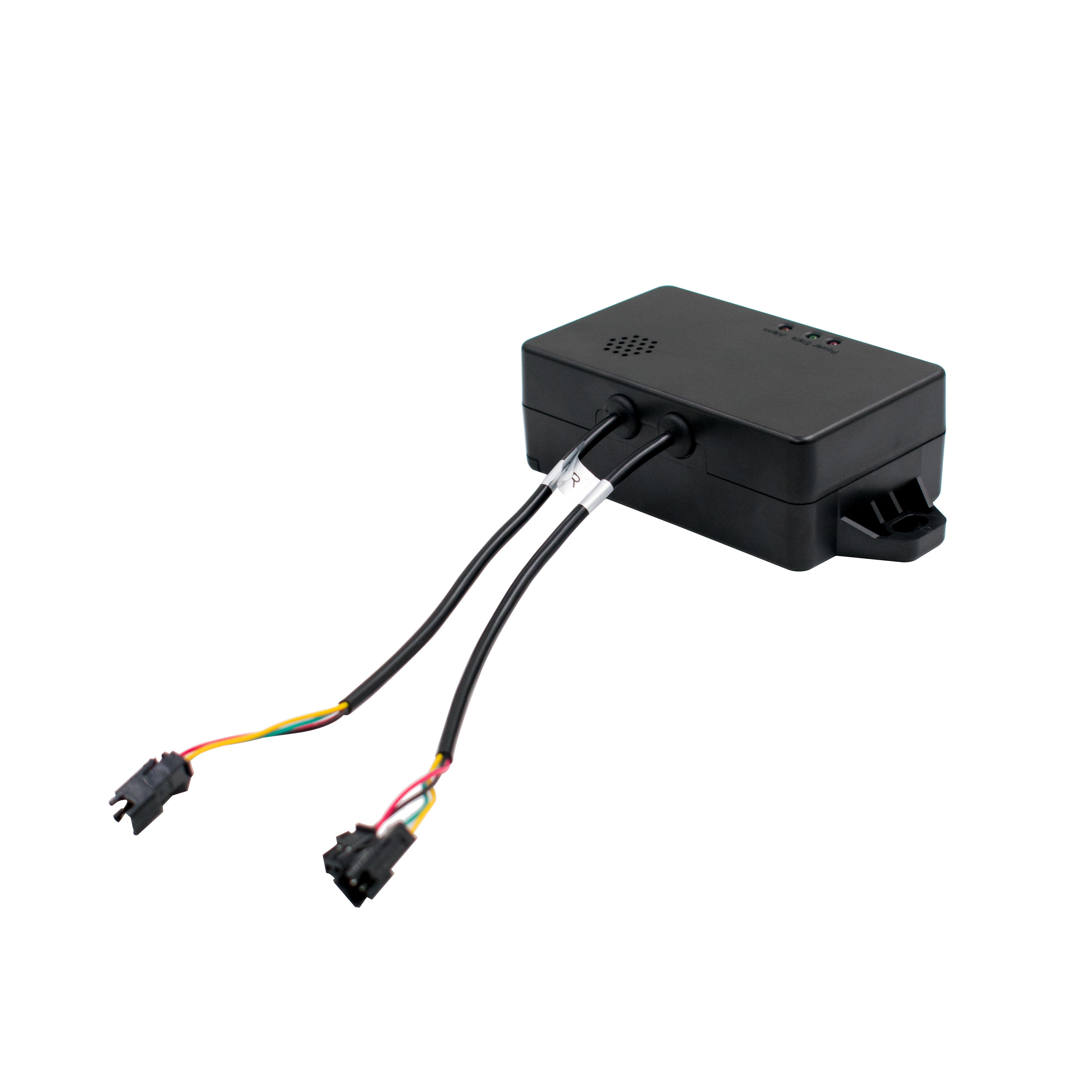

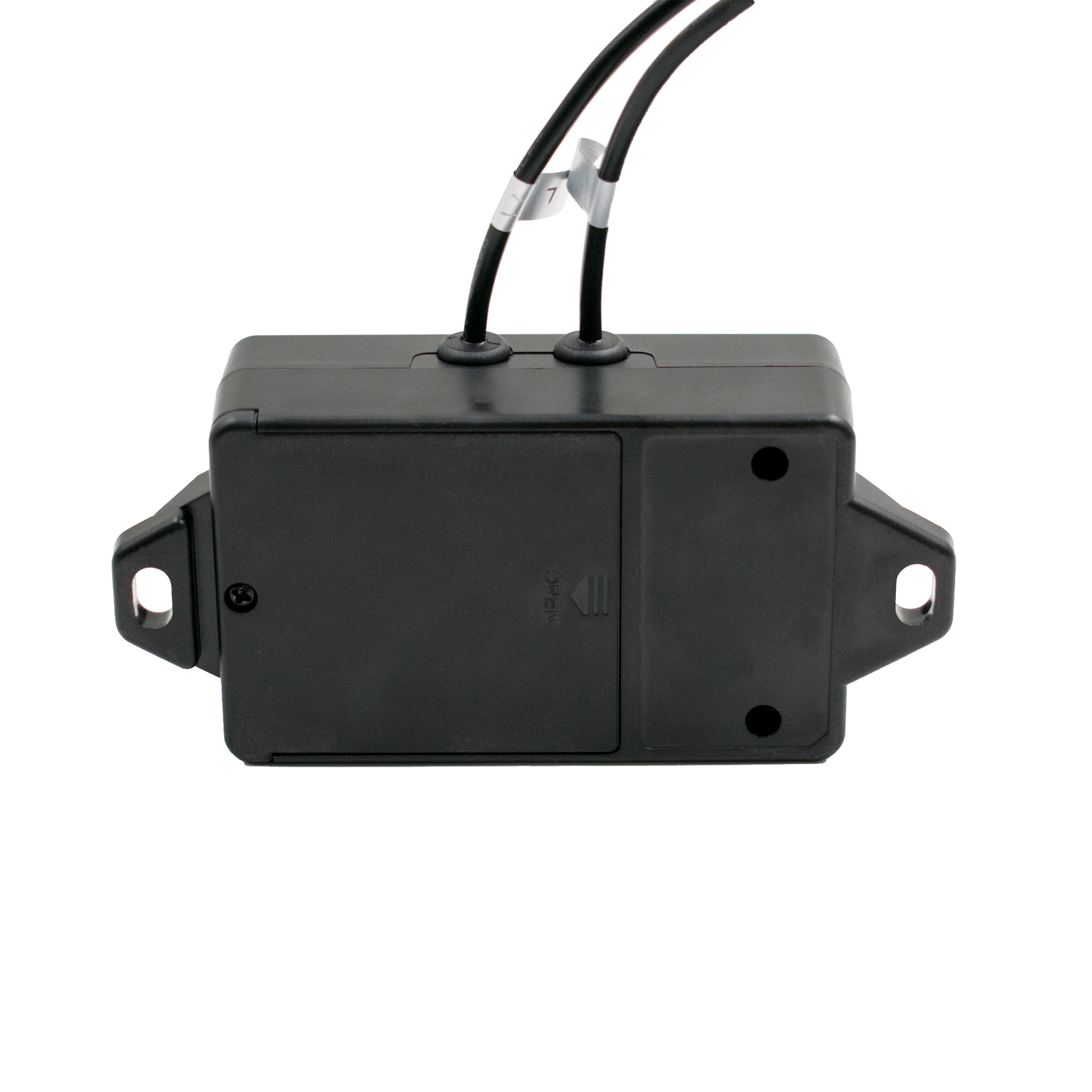

| Seat Belt Intelligent Alarm System Transmitting terminal LT-CB-02TA/LT-CB-02TB/LT-CB-03 | ||
| Name | Specification | Note |
| Communication frequency band | Sub-1G | |
| Communication distance | 50 meters | |
| Power supply mode | bus power or battery (AA*4) | |
| Supply voltage | 9V-36V DC | |
| Installation method | roll band binding or screw installation | |
| Appearance size | 108(W)mm×66(H)mm×38.5(D)mm | |

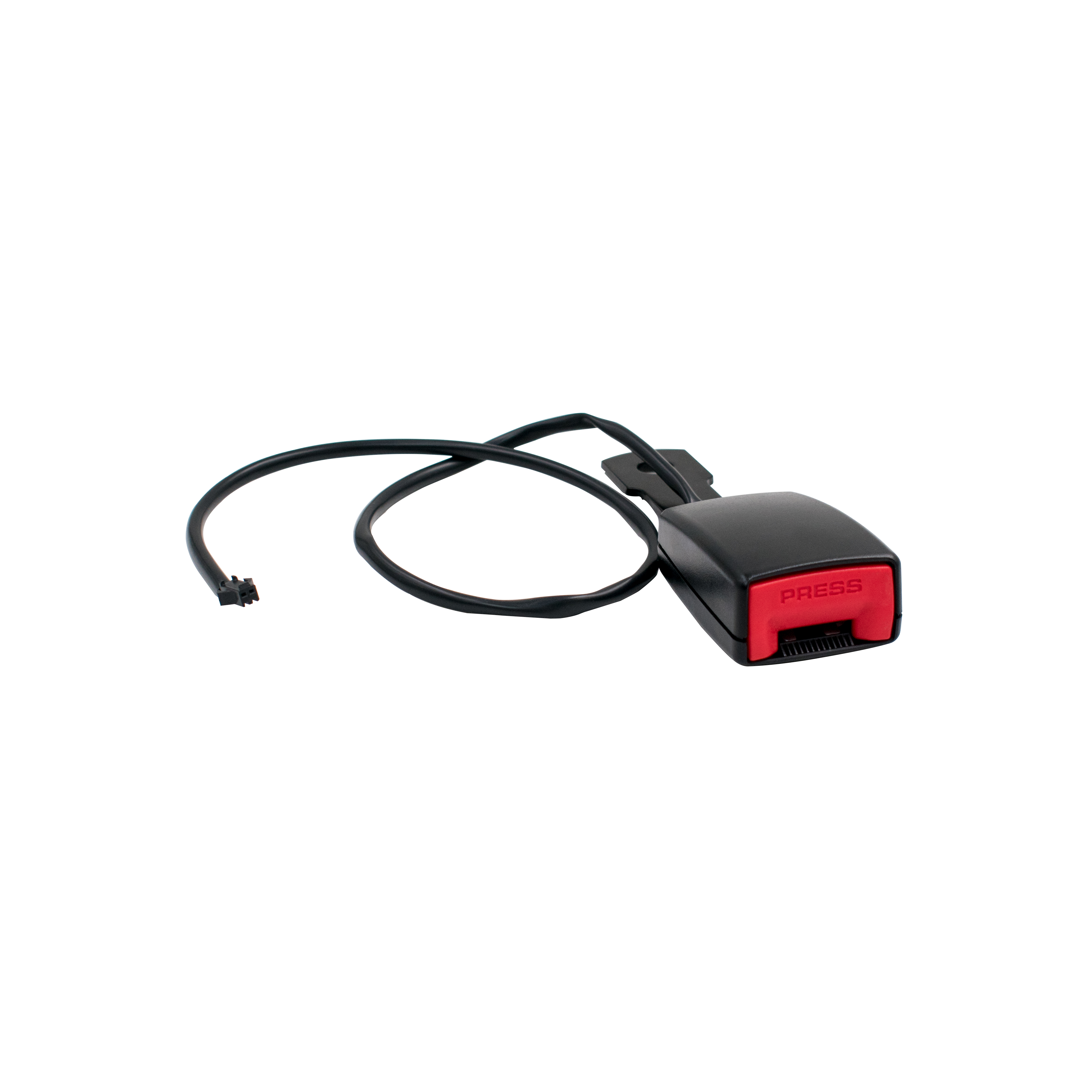

| Seat Belt Intelligent Alarm System Seat Belt buckle LT-CB-1 | ||
| Name | Specification | Note |
| Detection method | snap contact | |
| Main body size | total length 155mm | excluding harness length |
| Product color | black | |
| Interface model | SM2.5-2Y (2Pin) | |
| Installation method | screw fixed installation aperture 12.05mm | |
| Lead length | 600mm | |

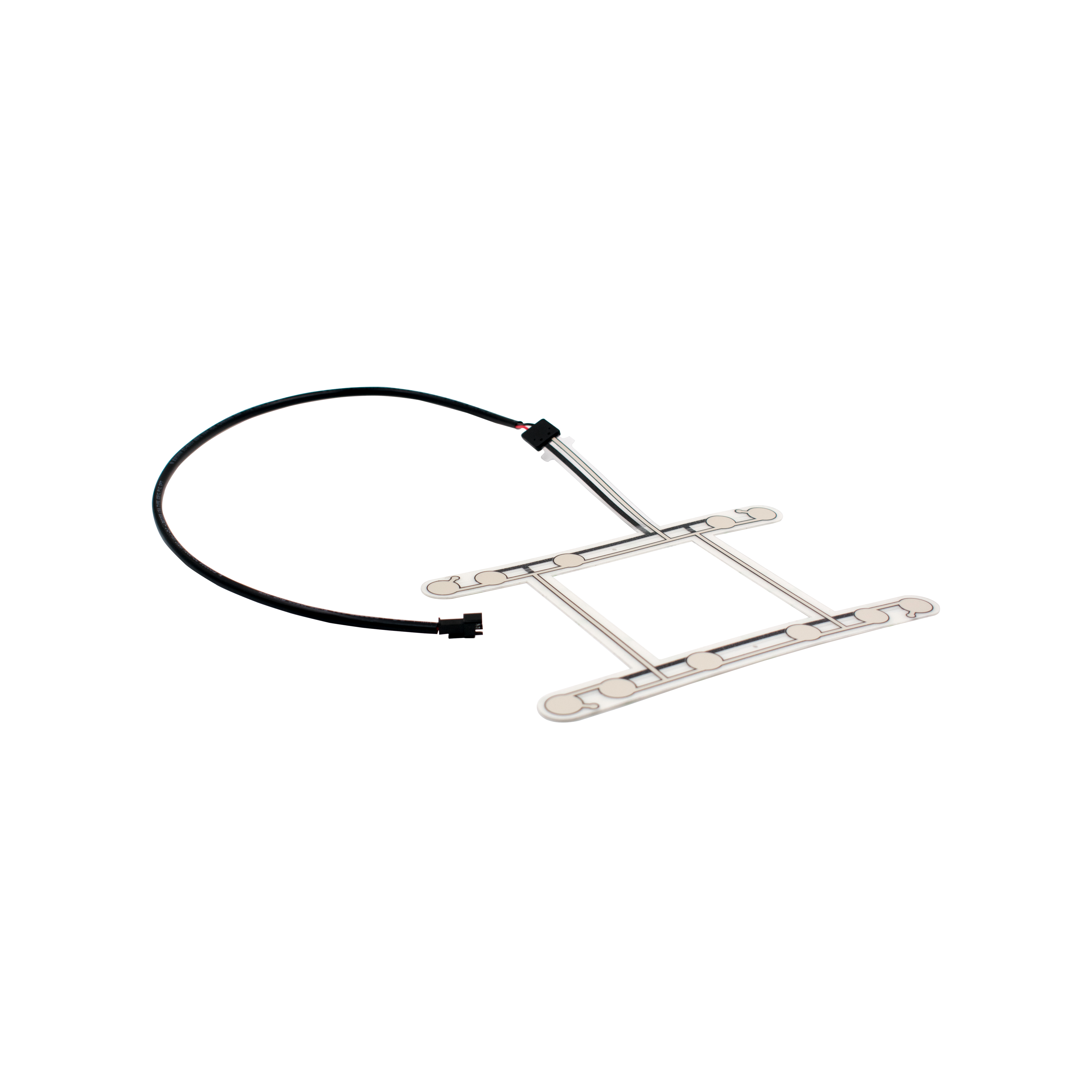

| Seat Belt Intelligent Alarm System Seat sensor LT-BT-2 | ||
| Name | Specification | Note |
| Product material | transparent PET | |
| Trigger mode | two-column double-contact trigger | |
| Main Body size | Coverage: 196.20x131.60mm Conductive part :112.40mm | |
| Interface model | SM2.5-2A (2Pin) | |
| Lead length | 600mm | |
| Installation method | paste (with 3M glue) | |
| Seat Belt Intelligent Alarm System 4G communication intelligent terminal LT-CB-12 | ||
| Name | Specification | Note |
| Screen size | 9" | |
| Touch screen | Capacitive screen | |
| System | Android 7.1 | |
| Communication band | Sub-1G | |
| Receiving distance | 50 meters | |
| Power supply mode | 9V~36V DC | |
| Data upload | 4G full Netcom | optional |
| Positioning method | GPS | optional |
| Audio output 1 | Built-in 2W speaker | optional |
| Audio output 2 | Connect to vehicle amplifier speakers | |
| Installation method | Installed on the front of the bus / fixed with screws | |
| Appearance size | 228(W)mm×156.5(H)mm×42(D)mm | |
| Seat Belt Intelligent Alarm System Transmitting terminal LT-CB-02TA/LT-CB-02TB/LT-CB-03 | ||
| Name | Specification | Note |
| Communication frequency band | Sub-1G | |
| Communication distance | 50 meters | |
| Power supply mode | bus power or battery (AA*4) | |
| Supply voltage | 9V-36V DC | |
| Installation method | roll band binding or screw installation | |
| Appearance size | 108(W)mm×66(H)mm×38.5(D)mm | |
| Seat Belt Intelligent Alarm System Seat Belt buckle LT-CB-1 | ||
| Name | Specification | Note |
| Detection method | snap contact | |
| Main body size | total length 155mm | excluding harness length |
| Product color | black | |
| Interface model | SM2.5-2Y (2Pin) | |
| Installation method | screw fixed installation aperture 12.05mm | |
| Lead length | 600mm | |
| Seat Belt Intelligent Alarm System Seat sensor LT-BT-2 | ||
| Name | Specification | Note |
| Product material | transparent PET | |
| Trigger mode | two-column double-contact trigger | |
| Main Body size | Coverage: 196.20x131.60mm Conductive part :112.40mm | |
| Interface model | SM2.5-2A (2Pin) | |
| Lead length | 600mm | |
| Installation method | paste (with 3M glue) | |
